Monitoring Setup¶
Stack¶
| Tool | Purpose |
|---|---|
| Prometheus | Metrics collection and storage (30 scrape targets) |
| Grafana | Dashboards and visualisation (Command Center + Freedom Fleet) |
| InfluxDB | Time-series storage for fleet and long-term metrics |
| Uptime Kuma | Service availability monitoring |
| Homepage | Service dashboard at dash.goozlab.net |
| Frigate Exporter | Custom Python exporter for camera/NVR metrics |
| Blackbox Exporter | ICMP ping monitoring for cameras |
| SNMP Exporter | UniFi switch and AP metrics |
All services run in a single Docker Host LXC container on the Management VLAN (docker-mon, 10.0.10.40).
Architecture¶
┌─────────────────────────────────────────────────────────────┐
│ Scrape Targets │
├─────────────────────────────────────────────────────────────┤
│ │
│ Proxmox Nodes NAS OPNsense │
│ pve1 :9100 Pi5 :9100 (FreeBSD metrics) │
│ pve2 :9100 │
│ pve3 :9100 │
│ │
│ Frigate NVR Home Assistant UniFi (SNMP) │
│ via exporter :9102 :8123/api/prom 4 devices via │
│ snmp-exporter │
│ │
│ Cameras (ICMP) Conduit Fleet (via WireGuard) │
│ 4 cameras via 5× app metrics :9101 │
│ blackbox-exporter 5× node_exporter :9100 (pending) │
│ 1× homelab node :9090 + :9100 │
└──────────────────────────┬──────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────┐
│ Monitoring LXC (docker-mon, 10.0.10.40) │
│ │
│ ┌────────────┐ ┌─────────┐ ┌────────────┐ ┌─────────┐ │
│ │ Prometheus │ │ Grafana │ │ Uptime │ │InfluxDB │ │
│ │ :9090 │ │ :3000 │ │ Kuma :3001 │ │ :8086 │ │
│ └────────────┘ └─────────┘ └────────────┘ └─────────┘ │
│ ┌────────────┐ ┌──────────────┐ ┌────────────────────┐ │
│ │ Homepage │ │ Frigate │ │ Blackbox Exporter │ │
│ │ :3002 │ │ Exporter │ │ (ICMP ping) │ │
│ │ │ │ :9102 │ │ │ │
│ └────────────┘ └──────────────┘ └────────────────────┘ │
│ ┌────────────────────┐ │
│ │ SNMP Exporter │ │
│ │ (UniFi devices) │ │
│ └────────────────────┘ │
└─────────────────────────────────────────────────────────────┘
Deployment¶
The monitoring stack uses the standard Docker Host LXC pattern. The full compose file includes all services:
# docker-compose.yml (simplified — key services)
services:
prometheus:
image: prom/prometheus:latest
container_name: prometheus
restart: unless-stopped
volumes:
- ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml
- prometheus_data:/prometheus
ports:
- "9090:9090"
grafana:
image: grafana/grafana:latest
container_name: grafana
restart: unless-stopped
volumes:
- grafana_data:/var/lib/grafana
ports:
- "3000:3000"
uptime-kuma:
image: louislam/uptime-kuma:latest
container_name: uptime-kuma
restart: unless-stopped
volumes:
- uptime_data:/app/data
ports:
- "3001:3001"
influxdb:
image: influxdb:2
container_name: influxdb
restart: unless-stopped
volumes:
- influxdb_data:/var/lib/influxdb2
ports:
- "8086:8086"
homepage:
image: ghcr.io/gethomepage/homepage:latest
container_name: homepage
restart: unless-stopped
environment:
- HOMEPAGE_ALLOWED_HOSTS=dash.goozlab.net,10.0.10.40,localhost
volumes:
- ./homepage/config:/app/config
ports:
- "3002:3000"
frigate-exporter:
image: python:3.11-slim
container_name: frigate-exporter
restart: unless-stopped
volumes:
- ./frigate-exporter:/app
working_dir: /app
command: python exporter.py
ports:
- "9102:9102"
blackbox-exporter:
image: prom/blackbox-exporter:latest
container_name: blackbox-exporter
restart: unless-stopped
volumes:
- ./blackbox/blackbox.yml:/config/blackbox.yml
command: --config.file=/config/blackbox.yml
ports:
- "9115:9115"
snmp-exporter:
image: prom/snmp-exporter:latest
container_name: snmp-exporter
restart: unless-stopped
volumes:
- ./snmp/snmp.yml:/etc/snmp_exporter/snmp.yml
ports:
- "9116:9116"
volumes:
prometheus_data:
grafana_data:
uptime_data:
influxdb_data:
Prometheus Configuration¶
The Prometheus config scrapes 30 targets across all infrastructure. Fleet metrics are collected exclusively over WireGuard tunnels — no metrics endpoints are exposed to the public internet.
# prometheus/prometheus.yml (structure — IPs redacted)
global:
scrape_interval: 15s
evaluation_interval: 15s
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'proxmox-nodes'
static_configs:
- targets:
- '<pve1-ip>:9100'
- '<pve2-ip>:9100'
- '<pve3-ip>:9100'
- job_name: 'nas'
static_configs:
- targets: ['<nas-ip>:9100']
- job_name: 'frigate'
static_configs:
- targets: ['localhost:9102']
- job_name: 'home-assistant'
metrics_path: /api/prometheus
bearer_token: '<long-lived-access-token>'
static_configs:
- targets: ['<ha-ip>:8123']
- job_name: 'blackbox-cameras'
metrics_path: /probe
params:
module: [icmp]
static_configs:
- targets:
- '<camera-front-ip>'
- '<camera-side-ip>'
- '<camera-rear-ip>'
- '<camera-doorbell-ip>'
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: localhost:9115
- job_name: 'snmp-unifi'
static_configs:
- targets:
- '<usw-lite-16-ip>'
- '<usw-lite-8-ip>'
- '<nanohd-1-ip>'
- '<nanohd-2-ip>'
metrics_path: /snmp
params:
auth: [public_v2]
module: [if_mib]
relabel_configs:
- source_labels: [__address__]
target_label: __param_target
- source_labels: [__param_target]
target_label: instance
- target_label: __address__
replacement: localhost:9116
# Conduit fleet — scraped via WireGuard tunnels
- job_name: 'conduit-fleet-nodes'
static_configs:
- targets:
- '10.0.60.11:9100'
- '10.0.60.12:9100'
- '10.0.60.13:9100'
- '10.0.60.14:9100'
- '10.0.60.15:9100'
- job_name: 'conduit-fleet-apps'
static_configs:
- targets:
- '10.0.60.11:9101'
- '10.0.60.12:9101'
- '10.0.60.13:9101'
- '10.0.60.14:9101'
- '10.0.60.15:9101'
- job_name: 'conduit-homelab-node'
static_configs:
- targets: ['<conduit-homelab-ip>:9100']
- job_name: 'conduit-homelab-app'
static_configs:
- targets: ['<conduit-homelab-ip>:9090']
Note: Replace
<*-ip>placeholders with your actual Management VLAN addresses. Internal IPs are kept out of public documentation.
Custom Exporters¶
Frigate Exporter¶
A custom Python exporter scrapes the Frigate API (/api/stats) and exposes metrics on port 9102:
frigate_camera_fps— FPS per camera per stream rolefrigate_detection_fps— Detection frames per secondfrigate_detector_inference_speed_ms— AI inference latencyfrigate_cpu_usage/frigate_mem_usage— Resource consumptionfrigate_up— Service availability
Blackbox Exporter¶
ICMP ping monitoring for all 4 cameras on the IoT VLAN. Tracks reachability and latency — useful for detecting camera drops or PoE switch issues.
SNMP Exporter¶
Monitors UniFi switches and access points via SNMP v2c. SNMP is enabled globally via the UniFi controller's CyberSecure settings (not per-device). Four devices respond: USW-Lite-16-PoE, USW-Lite-8-PoE, and both NanoHD APs. The USW Flex Mini 2.5G is excluded by the controller (no SNMP support).
Grafana Dashboards¶
Two primary dashboards:

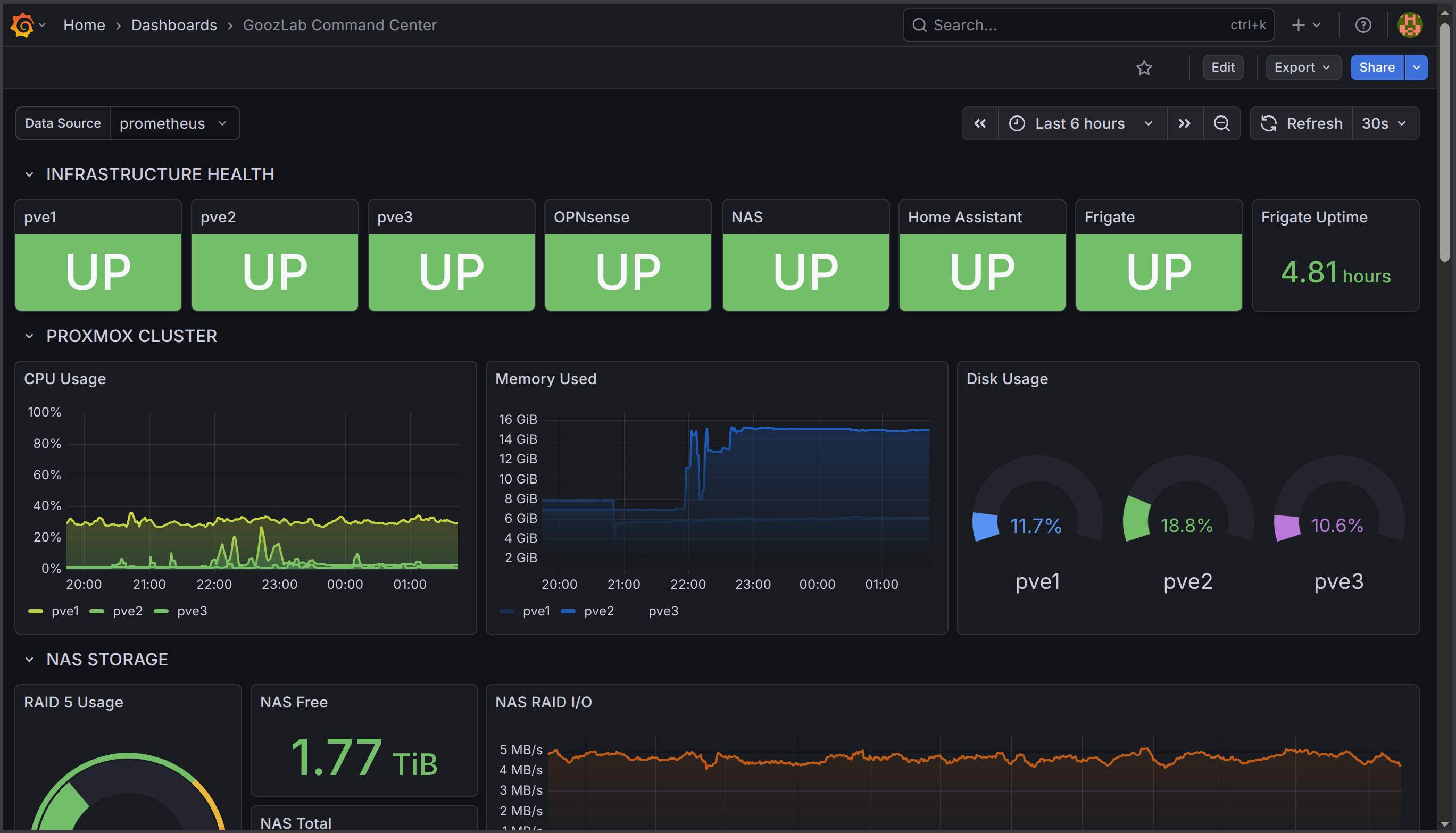

- GoozLab Command Center (v2): Infrastructure overview with Proxmox compute, NAS storage, OPNsense memory, Frigate camera health, network throughput, and service uptime
- GoozLab Freedom Fleet: Conduit fleet system health (CPU, RAM, disk per node), app metrics (connected clients, data transferred, broker announcements), fleet status table
Additional community dashboards:
- Node Exporter Full (Dashboard ID: 1860) — CPU, RAM, disk, network for Linux hosts
- Custom panels for Home Assistant solar metrics (pending prometheus filter configuration)
Uptime Kuma¶
Monitors service availability with HTTP, TCP, and ping checks for all critical services including OPNsense, all three Proxmox nodes, NAS, UniFi controller, Grafana, Frigate, Home Assistant, and all Caddy-fronted services.
What To Monitor¶
At minimum, set up alerts for:
- Disk usage >80% on any host — especially the NAS and Proxmox nodes
- RAM usage >90% — containers will get OOM-killed
- Service down — Uptime Kuma pings for every critical service
- RAID degradation — monitor
mdstaton the Pi NAS - Conduit fleet health — connected clients, broker announcements, node availability
- Camera reachability — Blackbox exporter ICMP checks
