OPNsense Setup

Hardware

Component	Specification
Board	ZimaBoard 2 (Model 1664)
CPU	Intel N150 (4 cores, up to 3.6GHz)
RAM	16GB LPDDR5x
Storage	64GB eMMC
Network	Dual Intel 2.5GbE NICs
Power	~6W TDP

The dual 2.5GbE NICs are critical — one for WAN, one for LAN. No need for VLAN-on-a-stick single-NIC setups.

Installation

1. Download OPNsense AMD64 image from opnsense.org
2. Flash to USB drive using Rufus or balenaEtcher
3. Connect a monitor and keyboard to the ZimaBoard (or use JetKVM for remote BIOS)
4. Boot from USB and follow the installer — select ZFS on the eMMC for the root filesystem

Initial Configuration

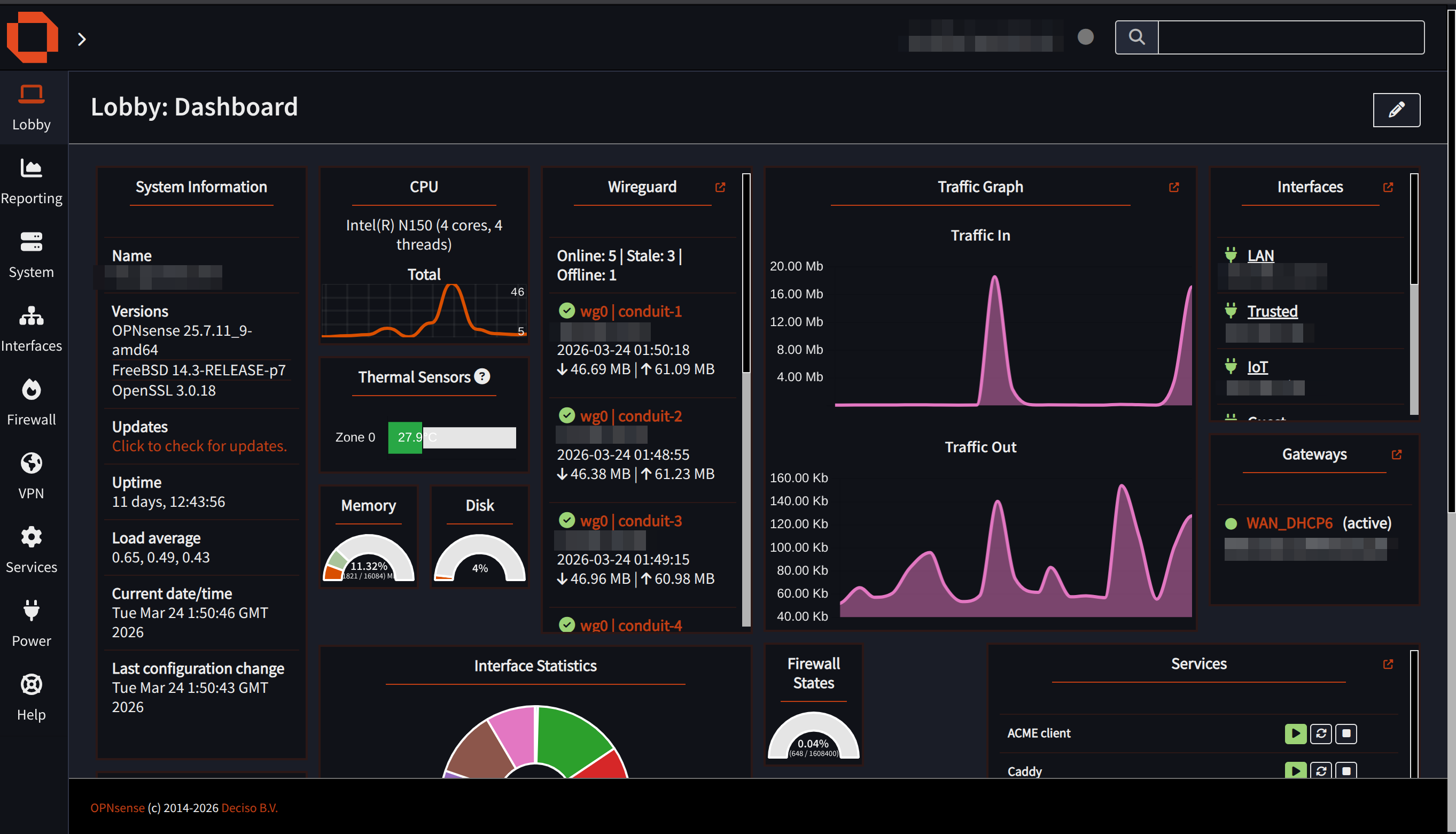

After install, connect to the web UI from a device on the LAN side:

1. Set hostname and domain: Something like fw1.goozlab.net
2. WAN interface: Configure PPPoE with ISP credentials (or DHCP if your ISP provides a modem with routing disabled)
3. LAN interface: Set your management subnet gateway IP
4. DNS: Change upstream servers to Quad9 with DNS-over-TLS (see below)

DNS-over-TLS with Unbound

OPNsense's built-in Unbound resolver handles all DNS. Configuration:

• Services → Unbound DNS → General: Enable, listen on all VLAN interfaces
• Services → Unbound DNS → DNS over TLS: Enable, add Quad9 servers (9.9.9.9 port 853, 149.112.112.112 port 853)
• System → Settings → General: Set DNS servers to Quad9 with "Use DNS over TLS" ticked
• Services → Unbound DNS → Blocklists: Enable OISD and Hagezi lists for ad/tracker blocking
• Services → Unbound DNS → DNSSEC: Enable validation

Force all DNS through Unbound

Some devices (Google Home, Chromecast) hardcode DNS servers like 8.8.8.8. Create a NAT port forward rule:

• Firewall → NAT → Port Forward: Redirect all outbound port 53 traffic to OPNsense's Unbound. This ensures every device on every VLAN uses your local resolver regardless of their DNS settings.

VLAN Interfaces

Create one VLAN interface per segment under Interfaces → Other Types → VLAN:

VLAN Tag	Parent	Interface Name	Purpose
10	LAN	MGMT	Management
20	LAN	TRUSTED	Personal devices
30	LAN	IOT	Cameras, smart devices
50	LAN	GUEST	Visitor WiFi
60	LAN	WIREGUARD	VPN tunnel
70	LAN	CONDUIT	Psiphon proxy

Assign each VLAN interface and configure its gateway IP as documented in Network Design.

Firewall Rules

Implement the inter-VLAN traffic matrix from VLAN Segmentation. Key principles:

• Default deny on every VLAN interface
• Explicit allow rules for permitted traffic
• IoT and Guest VLANs get a block rule for all RFC1918 ranges before the internet allow rule
• Conduit VLAN blocks everything except outbound internet

See Firewall Rules for the complete ruleset design.

WireGuard VPN

1. VPN → WireGuard → Instances: Create a tunnel with a generated key pair
2. Assign the WireGuard interface to VLAN 60's subnet
3. Create peers for each client device (phone, laptop)
4. Cloudflare DDNS: Under Services → Dynamic DNS, configure Cloudflare API to update your public hostname automatically
5. Port forward the WireGuard UDP port from WAN to the tunnel

Where FUTO Diverges

The FUTO guide by Louis Rossmann uses pfSense, but Rossmann himself recommends OPNsense for new users. The guide also uses OpenVPN — WireGuard is the modern alternative with better performance and simpler configuration.

The FUTO guide uses pfBlockerNG for ad blocking. OPNsense's equivalent is Unbound's built-in blocklist feature, which achieves the same result without an additional plugin.
