Wazuh SOC

Centralized security monitoring with Wazuh 4.14.4 — vulnerability scanning, intrusion detection, file integrity monitoring, CIS compliance benchmarks, and MITRE ATT&CK mapping across the entire GoozLab infrastructure.

---

Architecture

Wazuh runs as an all-in-one deployment (server + indexer + dashboard) on a dedicated VM on pve2. Agents report from every core node in the homelab.

Component	Detail
Server	VM 200 on pve2, Ubuntu 24.04
IP	10.0.10.70
Resources	4 cores, 8GB RAM, 50GB disk
Version	Wazuh 4.14.4
Access	wazuh.goozlab.net (VPN only)

Agents

ID	Name	IP	Platform	Key Features
000	wazuh (server)	127.0.0.1	Ubuntu 24.04	Local monitoring
001	opnsense	10.0.10.1	FreeBSD 14.3	Suricata eve.json, firewall logs, audit, DNS, IDS
002	pve1	10.0.10.100	Debian 13 (Trixie)	System monitoring, FIM, vuln scan
003	pve2	10.0.10.101	Debian 13 (Trixie)	System monitoring, FIM, vuln scan
004	pve3	10.0.10.102	Debian 13 (Trixie)	System monitoring, FIM, vuln scan
005	docker-mon	10.0.10.40	Debian 12 (Bookworm)	Monitoring stack host
006	nas	10.0.10.50	Debian 13 (Trixie/ARM64)	Storage monitoring
007	frigate	10.0.10.104	Debian (LXC)	NVR container monitoring

Installation

Server (VM on Proxmox)

Created as a full VM (not LXC) because the Wazuh indexer (OpenSearch) requires kernel-level vm.max_map_count tuning.

1. Create VM — Ubuntu 24.04 Server, 4 cores, 8GB RAM, 50GB disk on pve2
2. Extend LVM — Ubuntu Server only allocates half the disk by default:

   sudo lvextend -l +100%FREE /dev/ubuntu-vg/ubuntu-lv
   sudo resize2fs /dev/ubuntu-vg/ubuntu-lv


3. Set kernel parameter:

   sudo sysctl -w vm.max_map_count=262144
   echo "vm.max_map_count=262144" | sudo tee -a /etc/sysctl.conf


4. Run the installer:

   curl -sO https://packages.wazuh.com/4.14/wazuh-install.sh && sudo bash ./wazuh-install.sh -a


5. Post-install: Disable the Wazuh repo to prevent accidental upgrades:

   sudo sed -i 's/^deb /#deb /' /etc/apt/sources.list.d/wazuh.list


Agent Enrollment

Auto-enrollment with password is unreliable between agent/server version mismatches. Manual key import works every time:

On the Wazuh server:

# Register an agent
sudo /var/ossec/bin/manage_agents -a <AGENT_IP> -n <AGENT_NAME>

# Extract the key
sudo /var/ossec/bin/manage_agents -e <AGENT_ID>

On the agent (Linux):

# Install
curl -s https://packages.wazuh.com/key/GPG-KEY-WAZUH | gpg --no-default-keyring --keyring gnupg-ring:/usr/share/keyrings/wazuh.gpg --import && chmod 644 /usr/share/keyrings/wazuh.gpg
echo "deb [signed-by=/usr/share/keyrings/wazuh.gpg] https://packages.wazuh.com/4.x/apt/ stable main" | tee /etc/apt/sources.list.d/wazuh.list
apt-get update && apt-get install -y wazuh-agent

# Import key and configure manager
/var/ossec/bin/manage_agents -i <BASE64_KEY>
sed -i 's/MANAGER_IP/10.0.10.70/' /var/ossec/etc/ossec.conf

# Start and disable repo
systemctl daemon-reload && systemctl enable --now wazuh-agent
sed -i 's/^deb /#deb /' /etc/apt/sources.list.d/wazuh.list

On OPNsense:

1. Install os-wazuh-agent from System → Firmware → Plugins
2. Register manually on the Wazuh server, extract key
3. Import key on OPNsense via SSH: /var/ossec/bin/manage_agents -i <KEY>
4. Configure via GUI: Services → Wazuh Agent → Settings
5. Enable: Suricata (IDS events), filter (firewall), audit, resolver (DNS)
6. Enable: File integrity monitoring, System inventory

Active Response

Wazuh is configured to automatically push firewall blocks to OPNsense when repeated firewall block events are detected:

<command>
  <name>opnsense-fw</name>
  <executable>opnsense-fw</executable>
  <timeout_allowed>yes</timeout_allowed>
</command>

<active-response>
  <disabled>no</disabled>
  <command>opnsense-fw</command>
  <location>defined-agent</location>
  <agent_id>001</agent_id>
  <rules_id>87702</rules_id>
  <timeout>3600</timeout>
</active-response>

This triggers on rule 87702 (multiple firewall blocks from the same source) and blocks the offending IP for 1 hour via the OPNsense firewall.

Capabilities

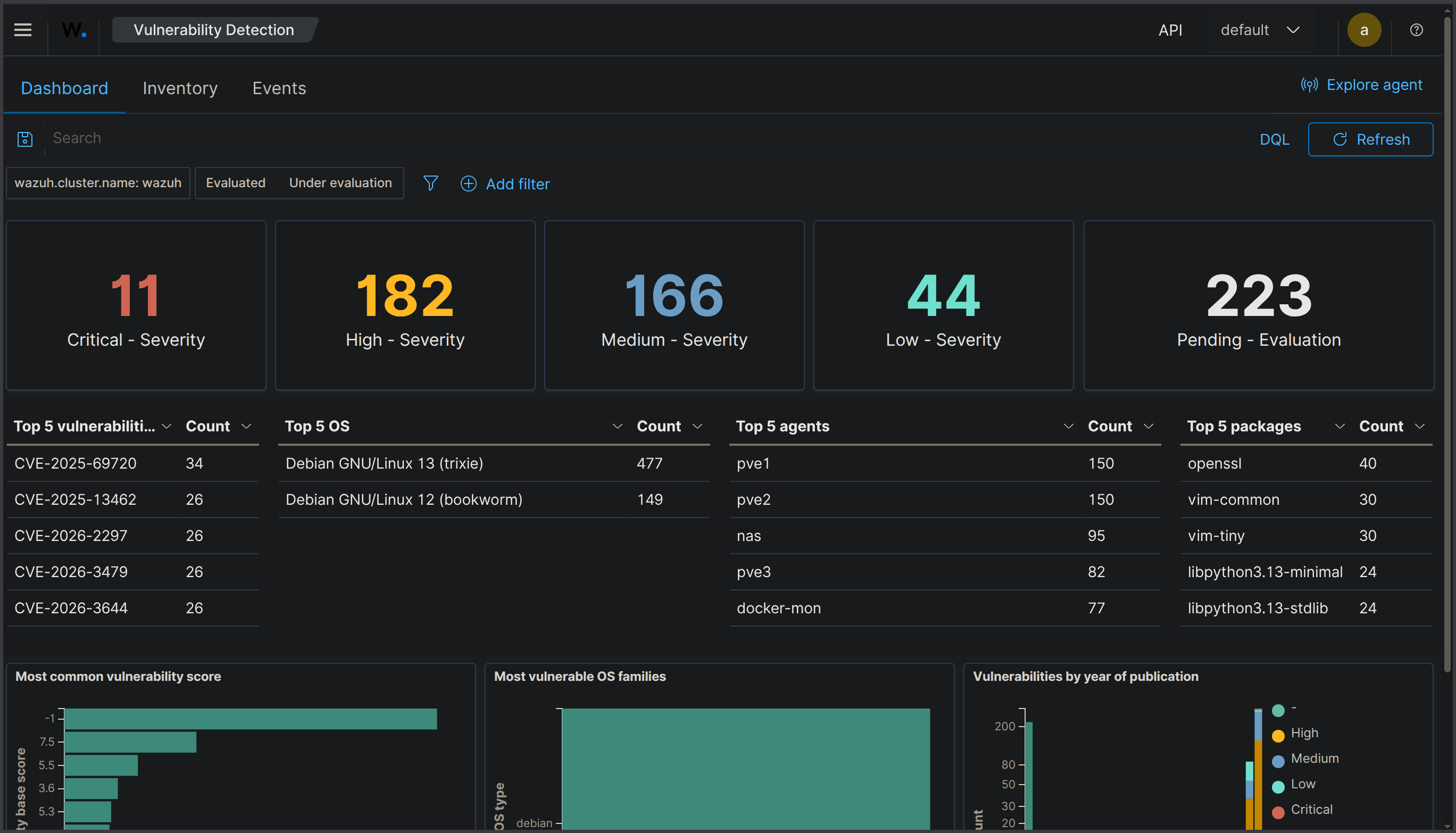

• Vulnerability Detection — Automated CVE scanning across all agents
• File Integrity Monitoring (FIM) — Tracks changes to critical system files
• Security Configuration Assessment (SCA) — CIS benchmarks for Debian 12/13 and Ubuntu 24.04
• Suricata Integration — IDS/IPS alerts from OPNsense eve.json correlated with MITRE ATT&CK
• Active Response — Automated firewall blocks pushed back to OPNsense

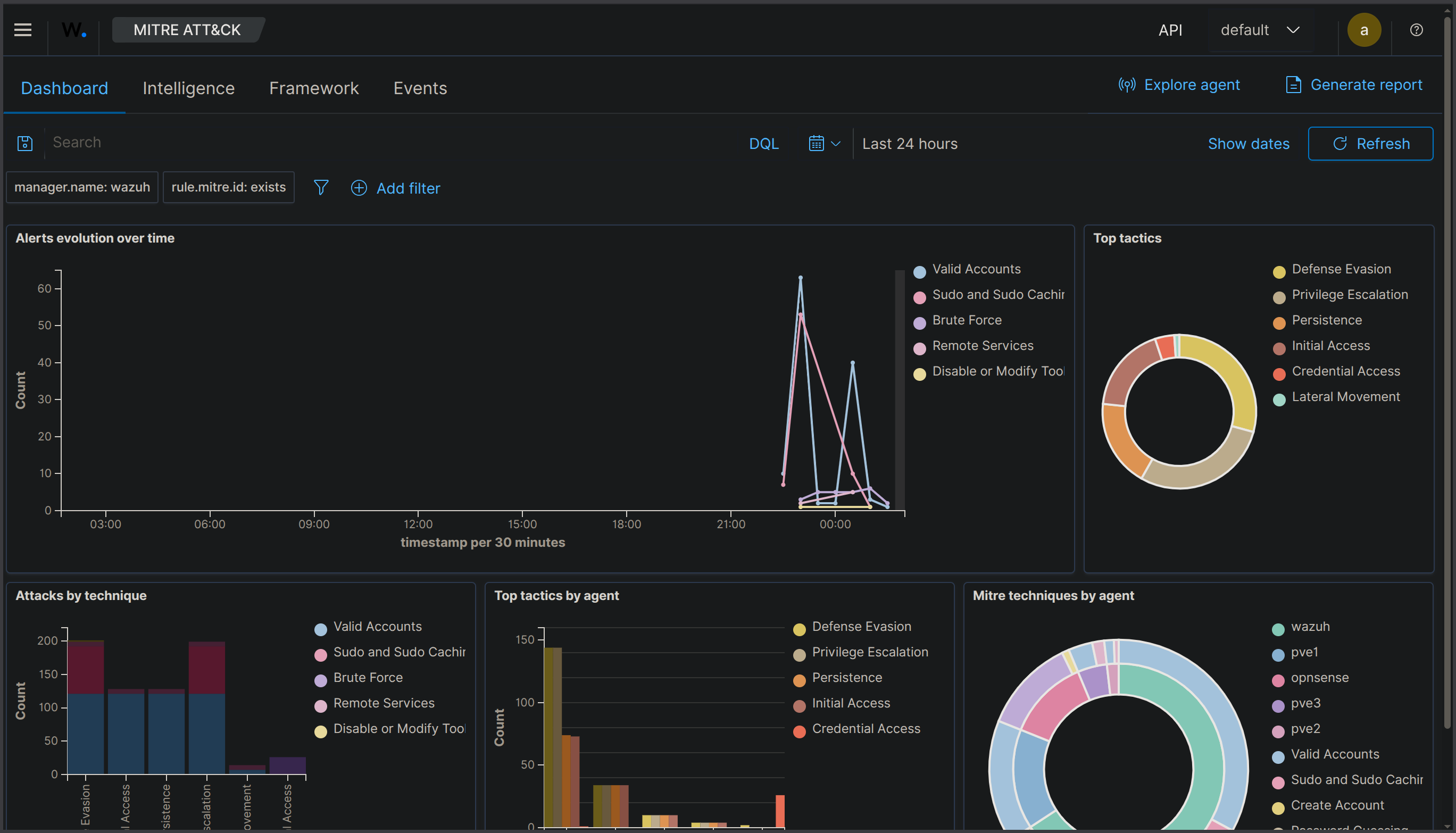

• MITRE ATT&CK Mapping — All alerts mapped to adversary tactics and techniques

- Rootcheck — Host-based anomaly detection - Log Analysis — Centralized log collection from all infrastructure nodes

Reverse Proxy

Accessed via wazuh.goozlab.net through Caddy on OPNsense with TLS insecure skip verify (Wazuh uses a self-signed certificate):

• Domain: wazuh.goozlab.net
• Upstream: https://10.0.10.70:443
• TLS: Enabled with insecure skip verify
• Access: VPN only (not exposed to the internet)

Lessons Learned

• Ubuntu Server LVM only allocates approximately half the disk to the root logical volume. Always run lvextend after install.
• Wazuh auto-enrollment with password authentication fails silently between version mismatches (e.g., server 4.14.4 vs OPNsense agent 4.12.0). Manual key import via manage_agents is reliable.
• OPNsense agent is installed via the os-wazuh-agent plugin, which provides a GUI for configuration but uses the older FreeBSD Wazuh agent package (4.12.0).
• Wazuh requires a full VM, not an LXC container, because the OpenSearch indexer needs vm.max_map_count=262144 which requires kernel-level access.
• dpkg removal failures after a botched install can be fixed by removing the pre/post-removal scripts from /var/lib/dpkg/info/ and forcing purge.
